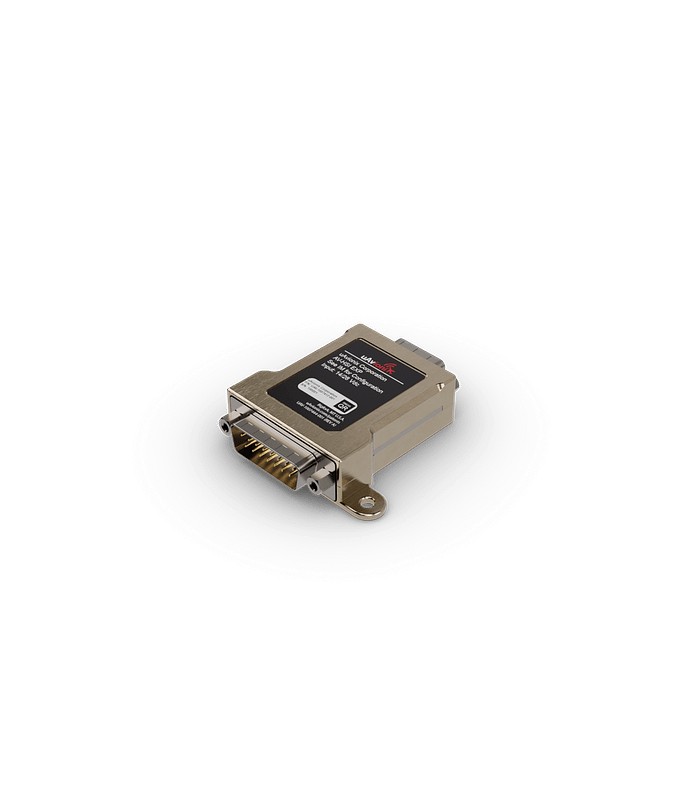

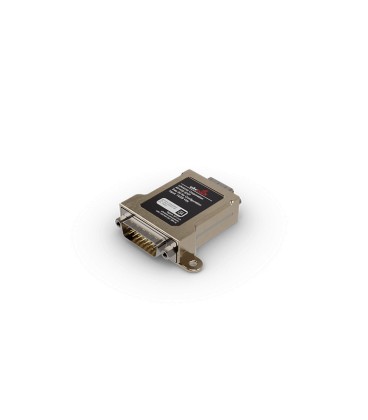

AV-HSI PMA

Interfacing with most panel-mounted GPS navigators through three ARINC 429 channels (2 RX, 1 TX), the AV-HSI accessory for the AV-30 communicates course and glideslope guidance for display on the AV-30 during GPS and ILS precision instrument approaches and navigation.

Features:

The AV-HSI includes four serial ports for connections to NAV/COMM radios and to act as a hub between multiple AV-30’s.  With the AV-HSI, multiple connected AV-30’s can receive navigation guidance as well as synchronized barometric and heading bug settings and OAT data.

Supported GPS Navigators:

• Avidyne IFD 410/440 and 510/540/545
• Garmin GPS 400(w)/GNC 420(w)
• Garmin GNS 430(w)/530(w)
• Garmin GTN 650(xi)/750(xi)
• Garmin GPS 175/GNC 355/GNX 375
• Garmin GPS 155XL/300XL

Supported NAV/COMM:

• Avidyne IFD 440/540/550
• Garmin GNS 430(w)/530(w)
• Garmin GTN 650(xi)/750(xi)
• Garmin GNC 255
• Garmin/Apollo SL30
• Trig TX56(a)

AV-HSI requires an AV-30-E
