Ping20Si

This system includes an integrated, high integrity WAAS GPS sensor derived from uAvionix’s TSO’d FYX technology, and a precision, temperature controlled, barometric sensor with accuracy beyond 60,000ft.

Features

• Mode S transponder.
• ADS-B 1090ES DF17 transmitter.
• Integrated WAAS GPS.
• Integrated static pressure sensor.
• Meets the performance requirements of TSO-C166b Class B1S and TSO-C122e Class 1, Level 2els @ 20W.
• Meets the minimum performance requirements of the following RTCA specifications:
  • DO-181E Class 1 Level 2els @ 20W
  • DO-260B Class B1S @ 20W
• GPS/SBAS augmentation system. Receiver Autonomous Integrity Monitoring (RAIM) layer for Fault Detection and Exclusion (FDE).
• Temperature controlled static pressure sensor accurate to 60,000ft.
• Battery backed GPS for fast Time-to-First-Fix (TTFF).
• DO-160G environmental Cat B2.
• Directly connects to PixHawk TELEM interface.
• GDL90 compatible CONTROL serial input. Compatible with popular autopilots.
• GDL90 ownship and altitude packets.
• SMA 1030/1090MHz Antenna Connector.

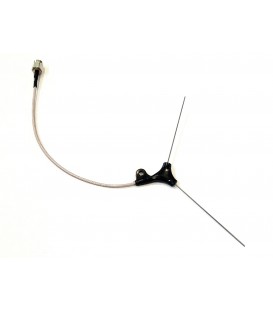

• Delivery is including dipole antenna
• Integrated GPS antenna.
• US Patents Pending.

Regulatory
Meets the requirements of:

• DO-181E Class 1, Level 2els (20W output power level)
• DO-260B Class B1S, DO-229D Class Beta 1,
• ICAO Annex 10, Volume IV,
• EuroCAE ED-115 Class LcF,
• Radio Equipment directive: 2014/53/EU

Note: Please check your countries radio licence Legislations. ADS-B out can require a permit to transmit on 1090Mhz (for The Netherlands this is € 120,00 per year).
